Components

I see three parts to this project:

a dependency extractor
an XML format
a visualization tool

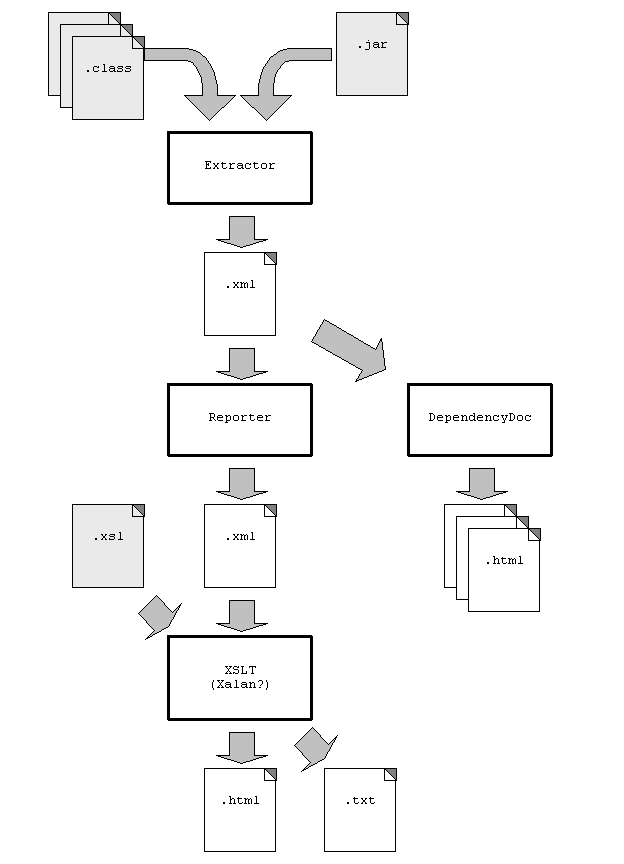

They work together according to the following workflow. The grayed-out files represent input to the workflow, the white files are output of the workflow.

**Dependency Finder Workflow**

Dependency Extractor

A tool to extract dependencies from .class files.

At least, extract for each class the list of classes that it depends upon. If we have time, it might be useful to have a breakdown by method and attributes, but this may prove difficult.

Here is the command-line usage for the current tool:

USAGE: DependencyExtractor
       [-help] (defaults to false)
       [-maximize] (defaults to false)
       [-minimize] (defaults to false)
       [-out value] (defaults to )
       [-serialize] (defaults to false)
       [-trace [value]] (defaults to System.out)
       [-verbose [value]] (defaults to System.out)
       [-xml] (defaults to false)
       [param ...]

If no files are specified, it processes the current directory.

If file is a directory, it is recusively scanned for files
ending in ".class".

Default is text output to the console.

XML Format

An XML DTD to represent dependency information. The format must be rich enough to represent all the output of the extractor.

Here is the DTD:

<!DOCTYPE dependencies [

<!ELEMENT dependencies (package)* >

<!ELEMENT package (name,outbound*,inbound*,class*) >

<!ELEMENT class (name,outbound*,inbound*,feature*) >

<!ELEMENT feature (name,outbound*,inbound*) >

<!ELEMENT name (#PCDATA)* >

<!ELEMENT outbound (#PCDATA)* >
<!ATTLIST outbound
          type (package|class|feature) #REQUIRED
>

<!ELEMENT inbound (#PCDATA)* >
<!ATTLIST inbound
          type (package|class|feature) #REQUIRED
>

]>

Visualization Tool

A visualization tool to massage and display the XML data.

The tool must be able to filter the information and present the following types of dependencies:

Dependencies between classes

Classes that a class depends upon
Classes that depend upon a class

Dependencies between packages

Packages that a package depends upon
Packages that depend upon a package

Dependencies between classes and packages

Packages that a class depends upon
Packages that depend upon a class
Classes that a package depends upon
Classes that depend upon a package

Here are sample dependency graphs that one can produce, given the right input data:

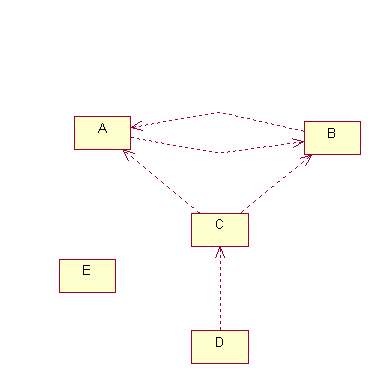

**Class-to-Class Dependencies**

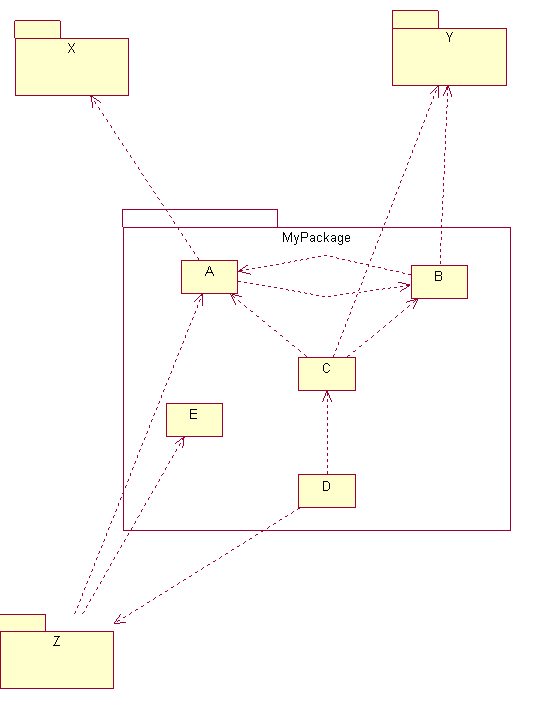

**Class-to-Package Dependencies**

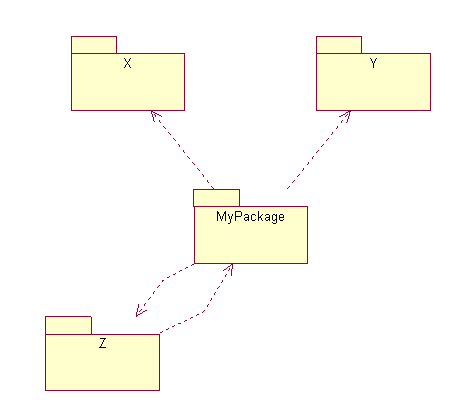

**Package-to-Package Dependencies**

It would be nice to have a GUI, but maybe we can keep it simple by producing Petal files or some other type of input for graphical (UML) tools.

Here is the command-line usage for the current tool:

USAGE: DependencyReporter
       [-c2c] (defaults to false)
       [-c2p] (defaults to false)
       [-class-filter] (defaults to false)
       [-class-filter-excludes value]* (defaults to [])
       [-class-filter-includes value]* (defaults to [])
       [-class-scope] (defaults to false)
       [-class-scope-excludes value]* (defaults to [])
       [-class-scope-includes value]* (defaults to [])
       [-excludes value]* (defaults to [])
       [-feature-filter] (defaults to false)
       [-feature-filter-excludes value]* (defaults to [])
       [-feature-filter-includes value]* (defaults to [])
       [-feature-scope] (defaults to false)
       [-feature-scope-excludes value]* (defaults to [])
       [-feature-scope-includes value]* (defaults to [])
       [-filter-excludes value]* (defaults to [])
       [-filter-includes value]* (defaults to [])
       [-help] (defaults to false)
       [-includes value]* (defaults to [])
       [-out value] (defaults to )
       [-p2p] (defaults to false)
       [-package-filter] (defaults to false)
       [-package-filter-excludes value]* (defaults to [])
       [-package-filter-includes value]* (defaults to [])
       [-package-scope] (defaults to false)
       [-package-scope-excludes value]* (defaults to [])
       [-package-scope-includes value]* (defaults to [])
       [-scope-excludes value]* (defaults to [])
       [-scope-includes value]* (defaults to [])
       [-serialize] (defaults to false)
       [-trace [value]] (defaults to System.out)
       [-verbose [value]] (defaults to System.out)
       [-xml] (defaults to false)
       param1
       ...

-p2p shorthand for the combination:
    -package-scope
    -package-filter

-c2p shorthand for the combination:
    -class-scope
    -package-filter

-c2c shorthand for the combination:
    -class-scope
    -class-filter

-f2f shorthand for the combination:
    -feature-scope
    -feature-filter

-includes \"str\" shorthand for the combination:
    -scope-incldues "str"
    -filter-incldues "str"

-excludes \"str\" shorthand for the combination:
    -scope-excldues "str"
    -filter-excldues "str"

Defaults is text output to the console.
